JN0-1361 – Service Provider Design - Specialist (JNCDS-SP)

Loading demo links...

Showing 1–3 of 10 questions

Question 1

Your WAN links are on a VPLS service from a single service provider. You must verify device configuration power and status in the event of a service outage.

Which two actions provide out-of-band management to your edge routers? (Choose two)

Select all that apply, then click Submit answer.

  • ○

    Place management traffic on a separate VLAN on the VPLS service
  • ○

    Connect each Ethernet management interface to a dedicated switch with traffic routed on its own subnet on the VPLS service
  • ○

    Connect each Ethernet management interface to a dedicated switch with its own WAN connection.
  • ○

    Connect each serial management port to a console server with a cellular Internet connection
Question 2

Your customer wants an MPLS-based L3VPN service between multiple remote locations. Which two statements are true regardingthe customer's WAN edge devices? (Choose two )

Select all that apply, then click Submit answer.

  • ○

    They must have EBGP configured.
  • ○

    They require routes for all remote sites.
  • ○

    They must have MPLS configured.
  • ○

    They require IP connectivity with the PEs.
Question 3

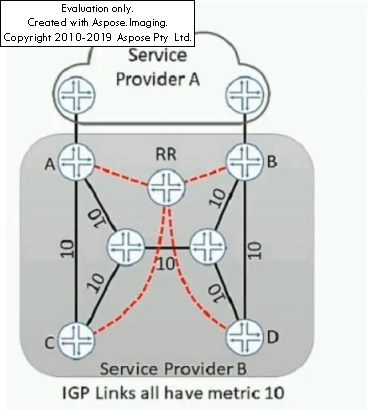

Exhibit.

You work for service provider B that wants to implement a hot potato routing policy on the network so that router C uses link C-A to reach service provider A's advertised routes and router D uses link D-B toreach

Service Provider A's advertised routes Currently traffic from router C is traversing the core to exit the network on router B.

Referring to the exhibit,what are two design actions thatwould satisfy the requirements? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Implement BGP-ORR
  • ○

    Configure new IBGP neighbors between routers C and A and routers D and B
  • ○

    Implement BGP-LS
  • ○

    Configure the route reflector to send multiple copies of a route learned from different IBGP peers to its clients.
