H12-261 – HCIE-R&S (Written) (Expert -Routing & Switching)

Loading demo links...

Showing 7–9 of 15 questions

Question 7

Which of the following statements regarding the stub area in OSPF are true?

Select all that apply, then click Submit answer.

  • ○

    A virtual link cannot pass through a stub area.
  • ○

    A backbone area cannot be configured as a stub area.
  • ○

    Type 7 LSAs cannot be flooded to a stub area.
  • ○

    A stub area contains no ASBR.
Question 8

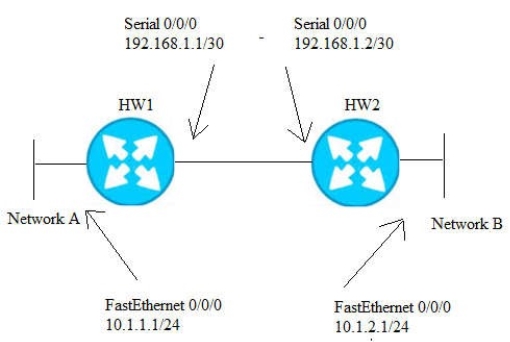

The HW network consists of Network A and B that are connected via Router HW1 and Router HW2. The HW network is shown in the following exhibit. To set up an IPSec VPN between routers HW1 and HW2, which of the following crypto access-lists must be configured on Router HW1 in order to send LAN to LAN traffic across the encrypted VPN tunnel?

Select an option, then click Submit answer.

  • ○

    rule permit ip source 10.1.2.0 0.0.0.255 destination 10.1.1.0 0.0.0.255
  • ○

    rule permit ip source 10.1.1.0 0.0.0.255 destination 192.168.1.2 0
  • ○

    rule permit ip source 198.168.1.1 0 destination 192.168.1.2 0
  • ○

    rule permit ip source 10.1.1.0 0.0.0.255 destination 10.1.2.0 0.0.0.255
  • ○

    rule permit ip source 192.168.1.1 0 destination 10.1.2.0 0.0.0.255
Question 9

After the shutdown command is run on one of two directly connected devices that establish an IBGP peer relationship, the BGP connection will not be torn down immediately.

Select an option, then click Submit answer.

  • ○

    TRUE
  • ○

    FALSE
