HPE6-A75 – Aruba Certified Edge Professional Exam

Loading demo links...

Showing 7–9 of 10 questions

Question 7

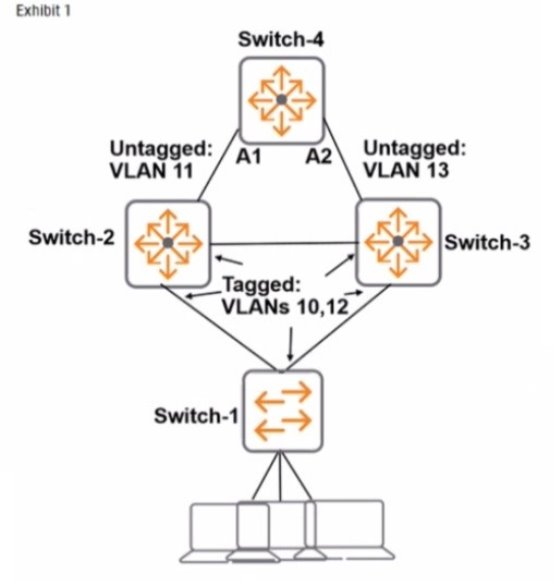

Refer to the exhibits.

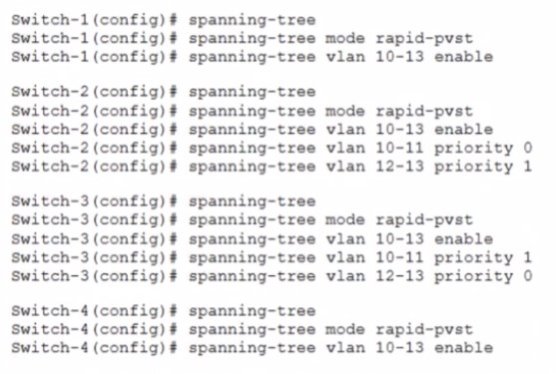

The network administrator enters the commands shown in Exhibit 2. What is the spanning tree status on Al and A2?

Select an option, then click Submit answer.

  • ○

    A1 towards traffic, and A2 blocks traffic.

  • ○

    Both Al and A2 block traffic.

  • ○

    A1 blocks traffic, and A2 forwards traffic.

  • ○

    Both A1 and A2 forward traffic


Question 8

An administrator configures the MultiZone feature for a company network, where a mobility cluster is the primary zone and a standalone controller in the company’s DMZ represents a secondary data zone. The administrator configures two AP Groups and respective VAPs for the zones on the Mobility Master (MM) in the primary zone. When the APs boot up and establish connections to both zones, the administrator notices that no data connections are established to the data zone.

What must the administrator do to fix this problem?

Select an option, then click Submit answer.

  • ○

    Configure the same AP Groups and VAPs on the standalone controller, and associate the MultiZone APs to both groups.

  • ○

    Configure the same AP Group in the data zone as it is in the primary zone, and configure the VAPs in the data zone.

  • ○

    Have the MultiZone APs initially boot from the standalone controller in the data zone.

  • ○

    Create different AP groups and VAPs on the Mobility Master and standalone controllers, and associate the MultiZone APs to both groups.


Question 9

in a VPN that uses certificate-based authentication, which component must be configured on the Mobility Master (MM) to allow a RAP to successfully connect to a Mobility Controller

(MC)

Select an option, then click Submit answer.

  • ○

    RAP VPN username and password

  • ○

    WLAN and new RAP group

  • ○

    RAP IPSec pre-shared key

  • ○

    RAP whitelist
