HPE6-A73 – Aruba Certified Switching Professional Exam

Loading demo links...

Showing 1–3 of 10 questions

Question 1

A network administrator is attempting to troubleshoot a connectivity issue between a group of users and a particular server. The administrator needs to examine the packets over a period of time from their desktop; however, the administrator is not directly connected to the AOS-CX switch involved with the traffic flow.

What is correct regarding the ERSPAN session that needs to be established on an AOS-CX switch? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    On the source AOS-CX switch, the destination specified is the switch to which the administrator’s desktop is connected
  • ○

    On the source AOS-CX switch, the destination specified is the administrator’s desktop
  • ○

    The encapsulation protocol used is GRE
  • ○

    The encapsulation protocol used is VXLAN
  • ○

    The encapsulation protocol is UDP
Question 2

The AOS-CX mobile app allows a network engineer or technician to perform which tasks? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Use NetEdit to manage switch configuration.
  • ○

    Create a stack of AOS-CX switches.
  • ○

    Transfer files between the switch and your mobile device.
  • ○

    Securely access the switch using SSH.
  • ○

    Schedule an operating system upgrade.
Question 3

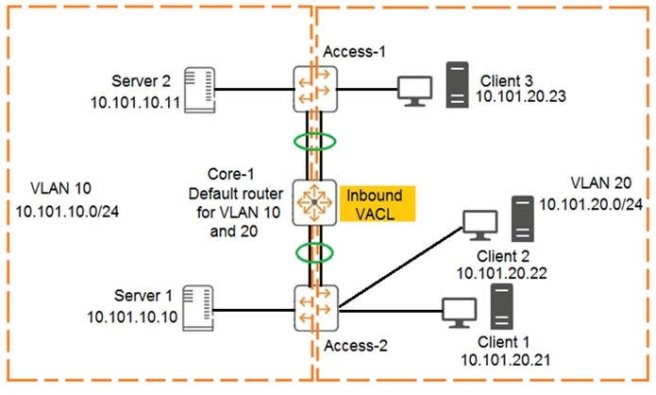

Examine the network exhibit:

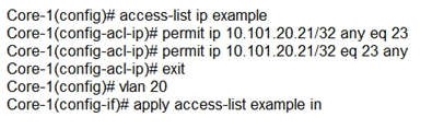

The ACL configuration defined on Core-1 is as follows:

If telnet was being used, which device connection would be permitted and functional in both directions? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Client 3 to Client 2
  • ○

    Client 1 to Client 2
  • ○

    Server 2 to Client 2
  • ○

    Server 1 to Client 1
  • ○

    Client 1 to Client 3
