HPE6-A69 – Aruba Certified Switching Expert Written Exam

Loading demo links...

Showing 1–3 of 10 questions

Question 1

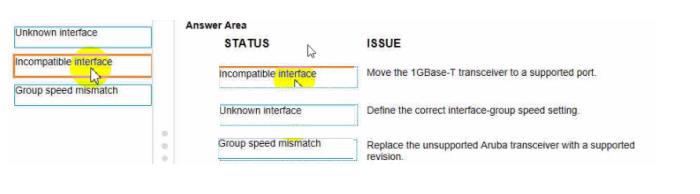

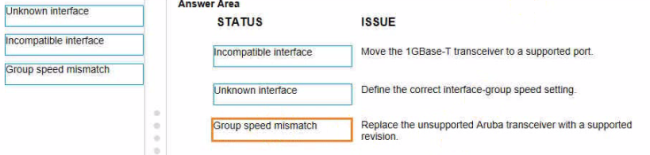

Match the repotted status to the Aruba 8325 issue (Each option may Be used once more than once, or not at all)

Answer is in the explanation below.

Question 2

The customer is currently planning the migration of their current switches from the existing Aruba 5400R to ArubaOS-CX 6400. Which statements are correct about the mitigation of rogue DHCP servers with the selected product? (Select two )

Select all that apply, then click Submit answer.

  • ○

    With Aruba CX 6400 configure dhcp-snooping for the selected VLANs with authorized servers
  • ○

    DHCP snooping can be enabled on ArubaOS-CX switches, once it's disabled on ArubaOS switches for same VLANs
  • ○

    DHCP snooping is supported on both IPv4 and IPv6
  • ○

    DHCP snooping needs to be enabled per VRF basis on Aruba CX 6400
Question 3

(Scenarios may contain multiple errors which may or may not Impact the solution)

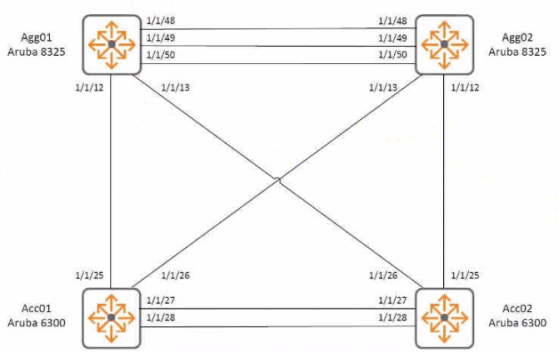

Refer to the exhibit.

An engineer has attempted to configure two pairs of switches in the referenced configuration, it is required to implement Multi-Chassis Link Aggregation for each pair of switches

The ports of the Aruba 8325 switches used for Agg01 and Agg02 are populated as follows:

There is an error message staling "incompatible interface." Which interfaces are the cause of the error? (Select two.)

Select all that apply, then click Submit answer.

  • ○

    1/1/12 10GBaseT SFP*+ 30m Cat6A Transceiver
  • ○

    1/1/49 40G QSFP+ 15m Active Optical Cable
  • ○

    1/1/13 10GBaseT SFP+ 30m Cat6A Transceiver
  • ○

    1/1/48 iGBaseT 100m Cat5e Transceiver
  • ○

    1/1/50 40G QSFP+ 15m Active Optical Cable
