HPE2-W09 – Aruba Data Center Network Specialist

Loading demo links...

Showing 7–9 of 10 questions

Question 7

Is this correct positioning of AtubaOS-CX switches in the data center?

Solution: A data center will use a leaf-spine topology and requires 64 leaf switches. Aruba CX 8325 switches can be a good choice for both the leaf and spine switches.

Select an option, then click Submit answer.

○
Yes
○
No

Question 8

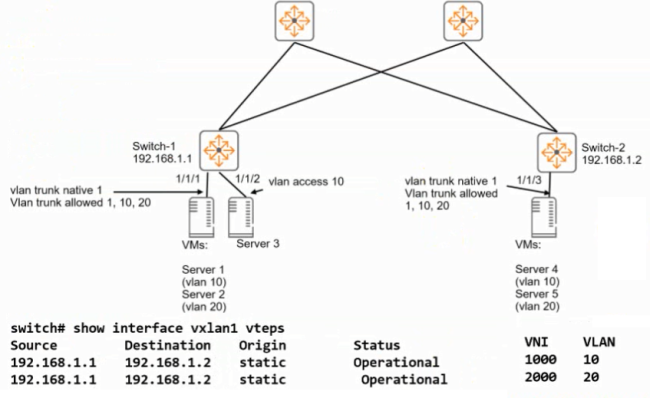

Refer to the exhibit.

$C:\Users\wk\Desktop\mudassar\Untitled.png$

Switch-1 and Switch-2 ate ArubaOS-CX switches that implement VXLAN WITHOUT Ethernet VPN (EVPN). Switch-2 uses the same VNI-to-VLAN mappings as Switch-1. Is this how the specified servers communicate?

Solution: The first time that Server I communicates with Server 3, It sends an ARP request to resolve Server 3's MAC address.

Select an option, then click Submit answer.

○
Yes
○
No

Question 9

A data center has a three-tier topology with ArubaOS-CX switches at each layer, is this a use case for implementing Virtual Switching Extension (VSX) at the core?

Solution: The customer wants to deploy a single control plane for the core fabric.

Select an option, then click Submit answer.

○
Yes
○
No

← Prev 1 2 3 4 Next →

Page 3 of 4
