NSE7_SDW-6.4 – Fortinet NSE 7 - SD-WAN 6.4.5

Loading demo links...

Showing 1–3 of 10 questions

Question 1

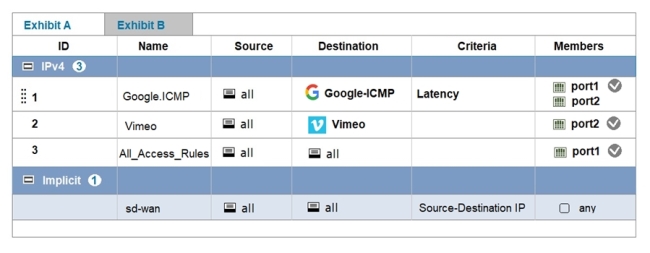

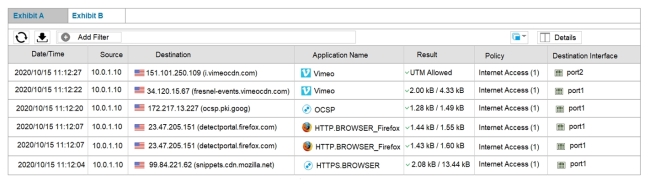

Refer to exhibits.

Exhibit A shows the SD-WAN rules and exhibit B shows the traffic logs. The SD-WAN traffic logs reflect how FortiGate processed traffic.

Which two statements about how the configured SD-WAN rules are processing traffic are true? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    The implicit rule overrides all other rules because parameters widely cover sources and destinations.
  • ○

    SD-WAN rules are evaluated in the same way as firewall policies: from top to bottom.
  • ○

    The All_Access_Rules rule load balances Vimeo application traffic among SD-WAN member interfaces.
  • ○

    The initial session of an application goes through a learning phase in order to apply the correct rule.
Question 2

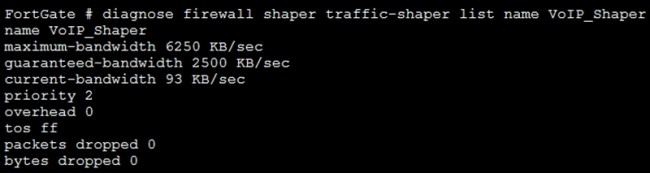

Refer to the exhibit.

Which two conclusions for traffic that matches the traffic shaper are true? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    The traffic shaper drops packets if the bandwidth exceeds 6250 KBps.
  • ○

    The traffic shaper limits the bandwidth of each source IP to a maximum of 6250 KBps.
  • ○

    The traffic shaper drops packets if the bandwidth is less than 2500 KBps.
  • ○

    The measured bandwidth is less than 100 KBps.
Question 3

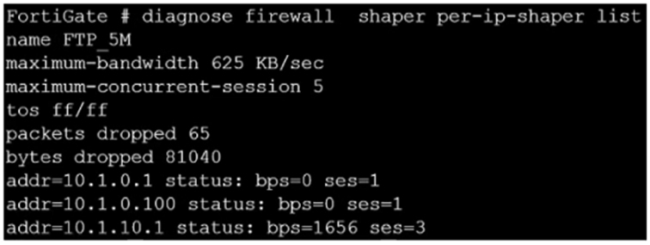

Refer to the exhibit.

Which are two expected behaviors of the traffic that matches the traffic shaper? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    The traffic shaper limits the bandwidth of each source IP address to a maximum of 625 KB/sec.
  • ○

    The number of simultaneous connections among all source IP addresses can exceed 5 connections.
  • ○

    The number of simultaneous connections allowed for each source IP address can exceed 5 connections.
  • ○

    The traffic shaper limits the combined bandwidth of all connections to a maximum of 5 MB/sec.
