NSE7_EFW-6.4 – Fortinet NSE 7 - Enterprise Firewall 6.4

Loading demo links...

Showing 4–5 of 5 questions

Question 4

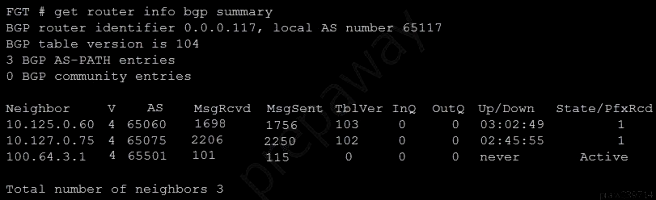

Refer to the exhibit, which shows the output of a BGP debug command.

Which statement about the exhibit is true?

Select an option, then click Submit answer.

  • ○

    The local router has not established a TCP session with 100.64.3.1
  • ○

    The local router BGP state is OpenConfirm with the 10.127.0.75 peer.
  • ○

    Since the counters were last reset, the 100.64.3.1 peer has never been down.
  • ○

    The local router has received a total of three BGP prefixes from all peers.
Question 5

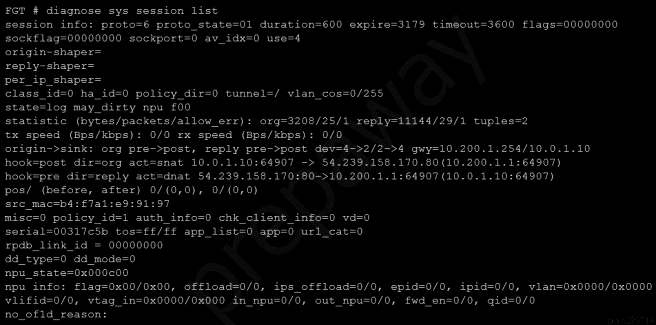

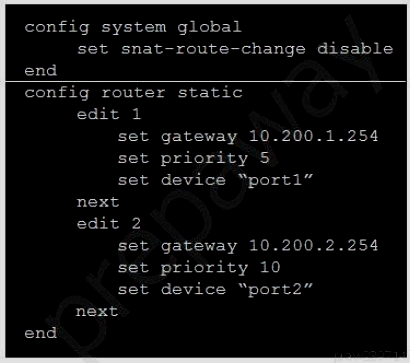

Refer to the exhibits, which show the configuration on FortiGate and partial session information.

All traffic to the Internet currently egresses from port1. The exhibit shows partial session information for Internet traffic from a user on the internal network.

If the priority on route ID 1 were changes from 5 to 20, what would happen to traffic matching that user session?

Select an option, then click Submit answer.

  • ○

    The session would remain in the session table, and its traffic would still egress from port1.
  • ○

    The session would be deleted, and the client would need to start a new session.
  • ○

    The session would remain in the session table, and its traffic would start to egress from port2.
  • ○

    The session would remain in the session table, but its traffic would now egress from both port1 and port2.
