101 – Application Delivery Fundamentals

Loading demo links...

Showing 19–20 of 20 questions

Question 19

Which of the following TMOS feature enables BIG-IP to scale performance based to the available CPU cores?

Select an option, then click Submit answer.

  • ○

    Clustered multi-processing
  • ○

    OneConnect
  • ○

    HTTP class
  • ○

    Session persistence
  • ○

    Auto Last Hop
Question 20

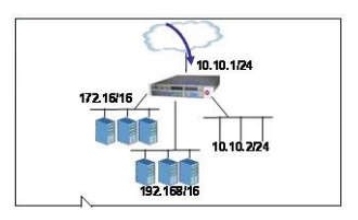

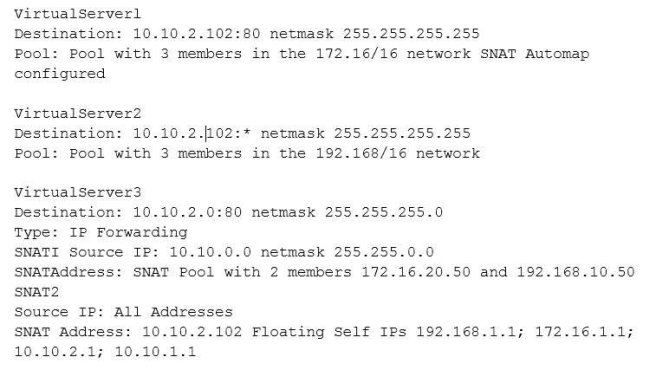

An LTM has the 3 virtual servers, 2 SNATs, four self IP addresses defined and the networks shown in the graphic below. Selected options for each object are shown below. Settings not shown are at their defaults. Assume port exhaustion has not been reached.

A connection attempt is made with a source IP and port of 10.20.10.50:2222 and a destination IP and port of 10.10.2.102:80. When the request is processed, what will be the source and destination IP addresses?

Select an option, then click Submit answer.

  • ○

    Source IP: 10.20.10.50; Destination IP: pool member in the 172.16/16 network
  • ○

    Source IP: 172316.20.50; Destination IP: pool member in the 182.16/16 network
  • ○

    Source IP: 192.168.1.1; Destination IP: pool member in the 192.168/16 network
  • ○

    The request will be dropped.
  • ○

    Source IP: 10.20.10.50; Destination IP: pool member in the 192.168/16 network
  • ○

    Source IP: 182.16.1.1; Destination IP: pool member in the 172316/16 network
  • ○

    Source IP: 192.168.10.50; Destination IP: pool member in the 192.168/16 network
  • ○

    Source IP:192.168.10.50; Destination IP: pool member in the 192.168./16 network
