DES-1721 – Specialist Implementation Engineer, SC Series Exam

Loading demo links...

Showing 1–3 of 10 questions

Question 1

DRAG DROP

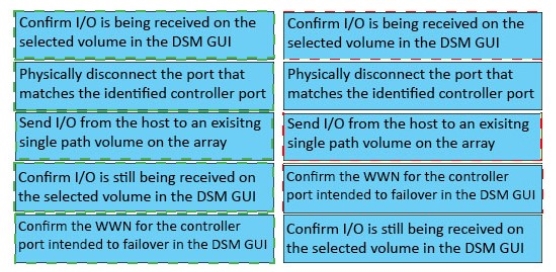

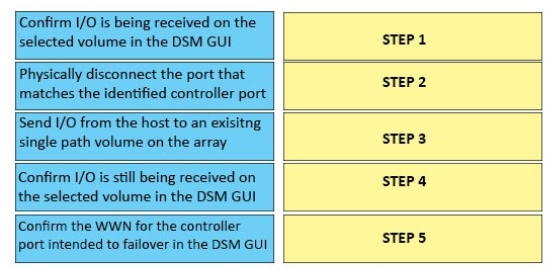

You have just deployed an SC Series array in Virtual Port Mode. What is the correct sequence of steps to perform an array port failover test?

Select & Place:





Answer is in the explanation below.

Question 2

Which zones accurately describe the zoning requirement for replication connectivity to be established when the source array is in Legacy Port Mode and the target array is in Virtual

Port Mode?

Select an option, then click Submit answer.

  • ○

    Zone 1 = All Source Virtual Port WWNs + All Remote Physical Port WWNsZone 2 = All
    Source Physical Port WWNs + All Remote Virtual Port WWNs

  • ○

    Zone 1 = All Physical WWNs from both arraysZone 2 = All Virtual WWNs from both arrays

  • ○

    Zone 1 = All Source WWNs + All Remote Virtual Port WWNsZone 2 = All Source WWNs
    + All Remote Physical Port WWNs

  • ○

    Zone 1 = All Source Virtual Port WWNs + All Remote Port WWNsZone 2 = All Source
    Physical Port WWNs + All Remote Port WWNs


Question 3

Why would the Key Management Server (KMS) Settings page appear during installation?

Select an option, then click Submit answer.

  • ○

    Page appears only if SED drives are present

  • ○

    Page only appears if an external KMS is defined during setup and configuration

  • ○

    Page is standard and always appears as part of the installation and configuration

  • ○

    Page only appears if a security certificate is not generated
