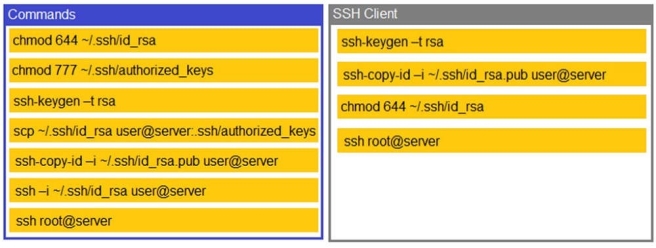

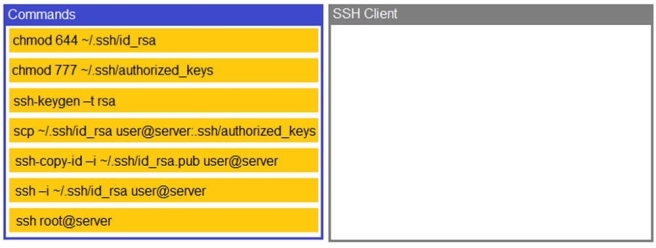

A security engineer is setting up passwordless authentication for the first time.
INSTRUCTIONS
Use the minimum set of commands to set this up and verify that it works. Commands cannot be reused.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
Select and Place:
Answer is in the explanation below.
Reference / correct answer:
Question 2
HOTSPOT

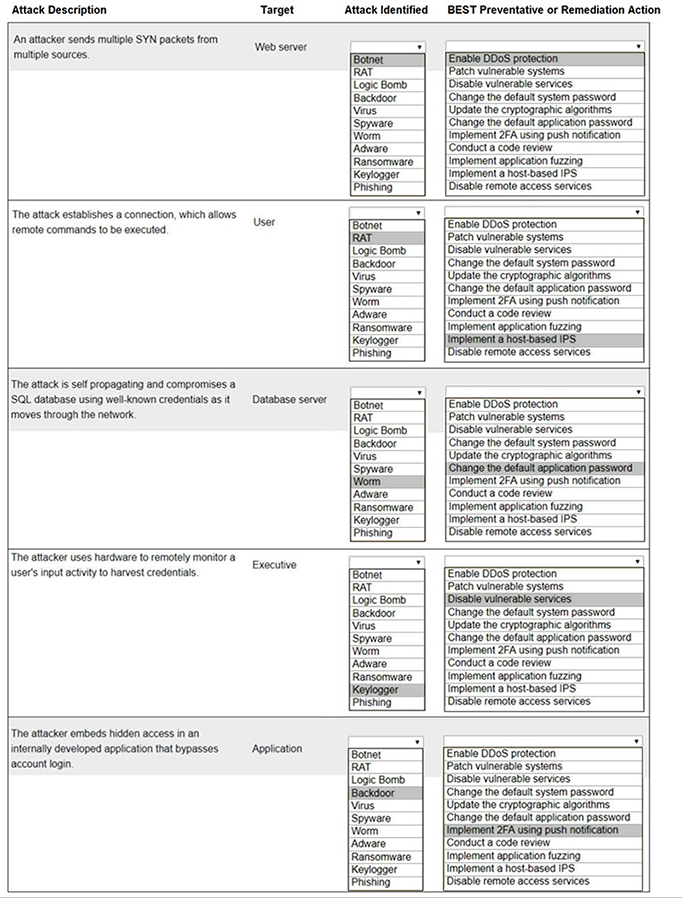

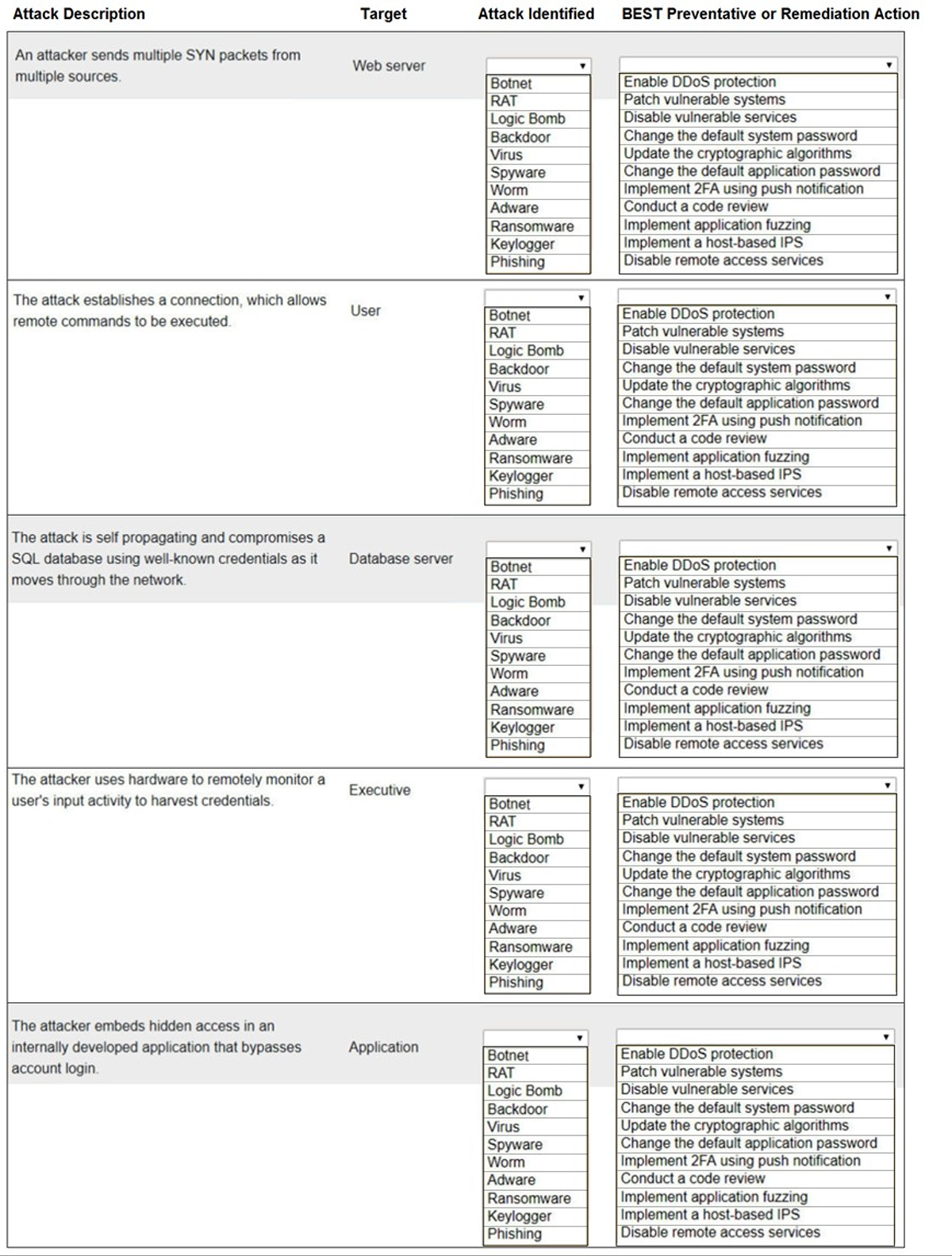

Select the appropriate attack and remediation from each drop-down list to label the corresponding attack with its remediation.
INSTRUCTIONS
Not all attacks and remediation actions will be used.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
Hot Area:
Answer is in the explanation below.
Reference / correct answer:
Question 3
A systems administrator needs to install a new wireless network for authenticated guest access. The wireless network should support 802. IX using the most secure encryption and protocol available.
Perform the following steps:
1. Configure the RADIUS server.
2. Configure the WiFi controller.
3. Preconfigure the client for an
incoming guest. The guest AD
credentials are:
User: guest01
Password: guestpass
Answer is in the explanation below.
Reference / correct answer:
Seetheexplanationbelowforthesolution.

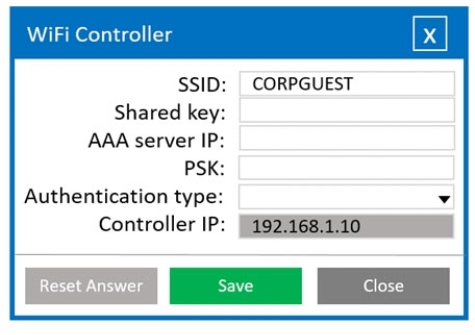

Wifi Controller
SSID: CORPGUEST
SHARED KEY: Secret
AAA server IP: 192.168.1.20
PSK: Blank
Authentication type: WPA2-EAP-PEAP-MSCHAPv2
Controller IP: 192.168.1.10
Radius Server
Shared Key: Secret
Client IP: 192.168.1.10
Authentication Type: Active Directory
Server IP: 192.168.1.20
Wireless Client
SSID: CORPGUEST
Username: guest01
Userpassword: guestpass
PSK: Blank
Authentication type: WPA2-Enterprise
