N10-007 – CompTIA Network+ 2018

DRAG DROP

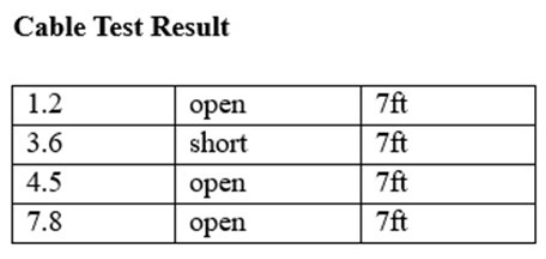

You have been tasked with testing a CAT5e cable. A summary of the test results can be found on the screen.

Instructions

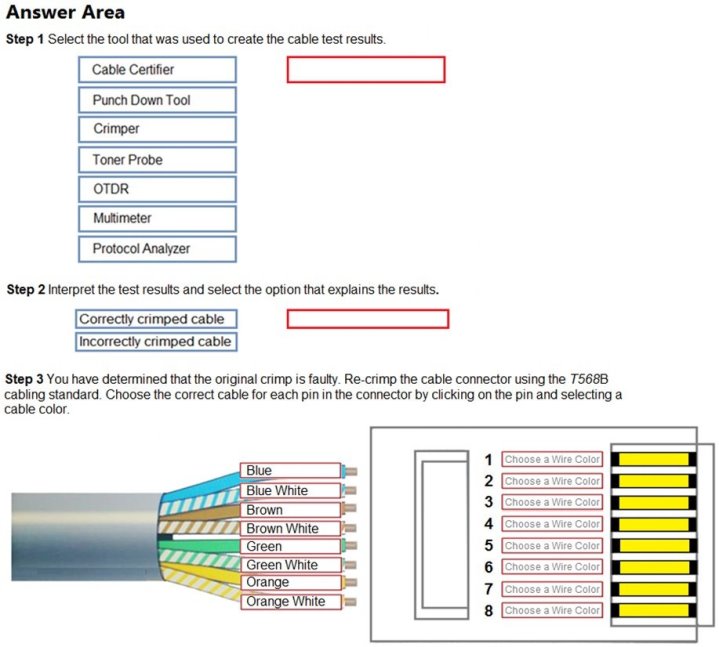

Step 1: Select the tool that was used to create the cable test results.

Step 2: Interpret the test results and select the option that explains the results. After you are done with your analysis, click the ‘Submit’ button.

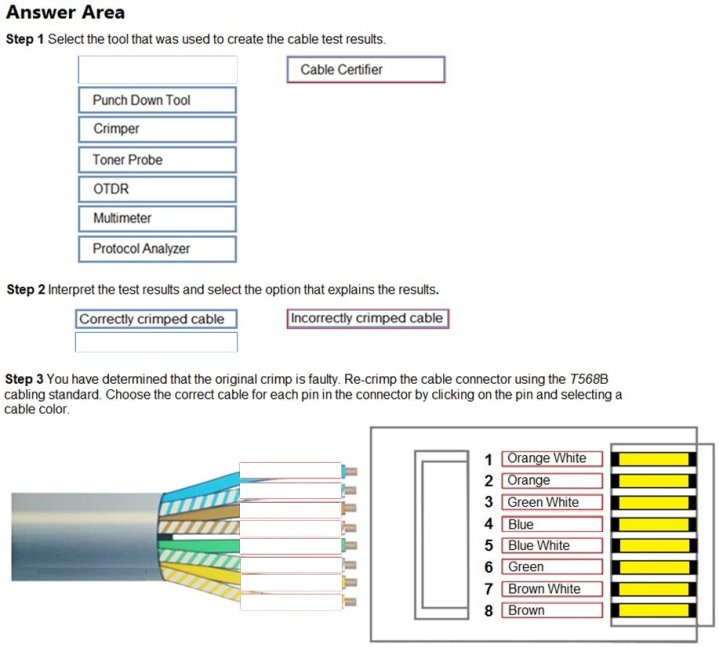

Step 3: You have determined that the original crimp is faulty. Re-crimp the cable connector using the T568B cabling standard. Choose the correct cable for each pin in the connector by clicking on the pin and selecting a cable color.

If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.

Select and Place:

HOTSPOT

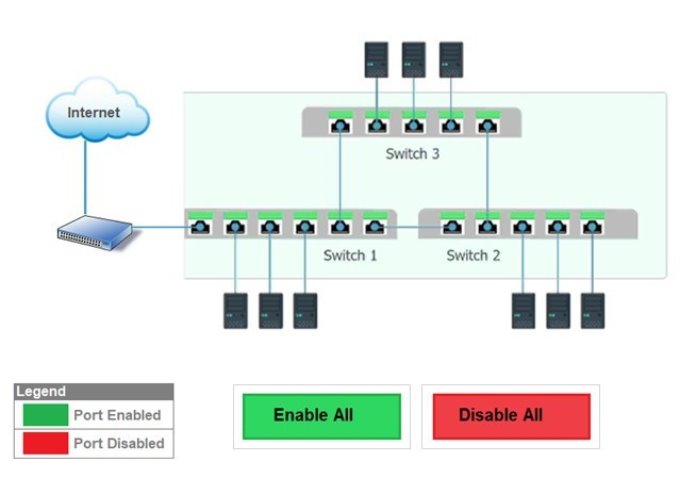

Workstations are unable to access the Internet after a recent power outage. Configure the appropriate devices to ensure All workstations have Internet connectivity.

Instructions

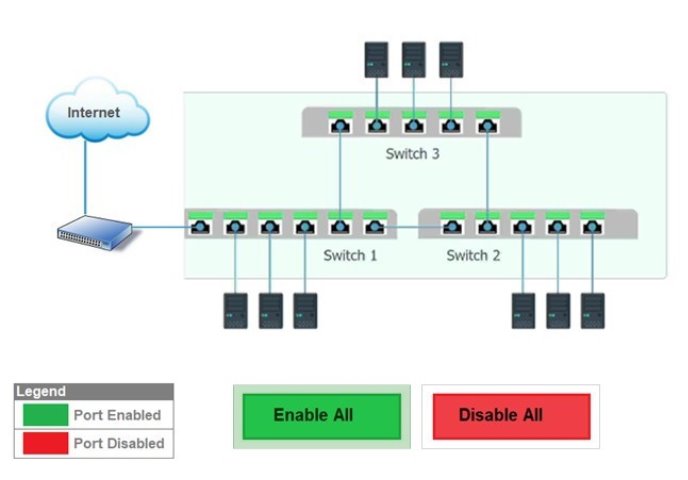

All ports can be enabled (fill) or disabled (no fill).

If at any time you wiuld like to bring back the initial state of the simulation, please click the Reset All button.

Hot Area:

SIMULATION

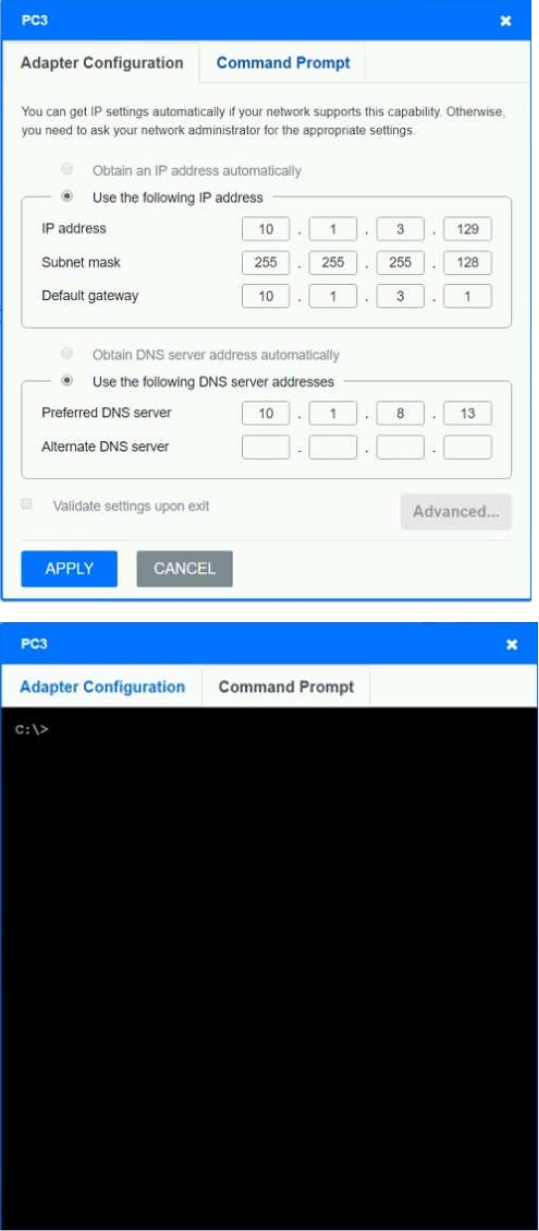

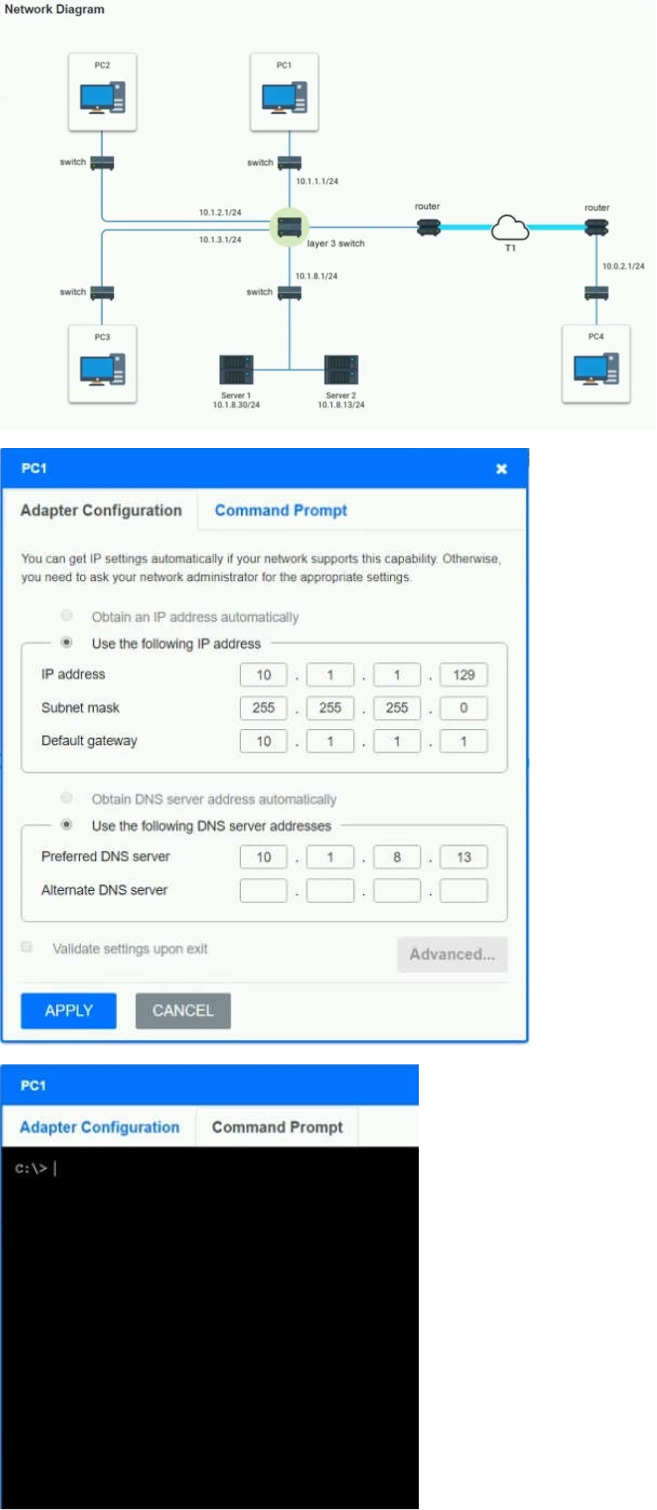

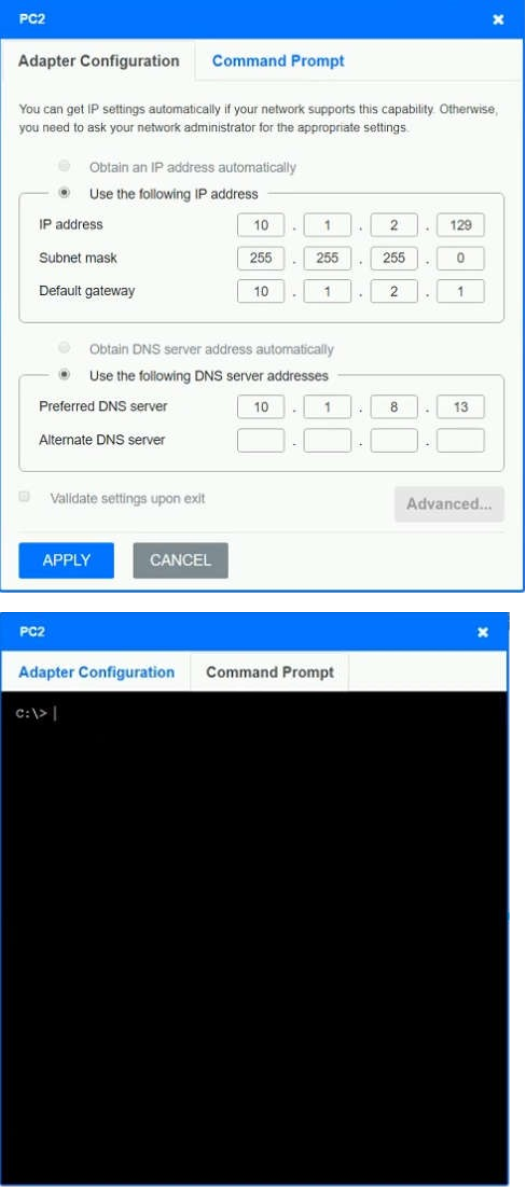

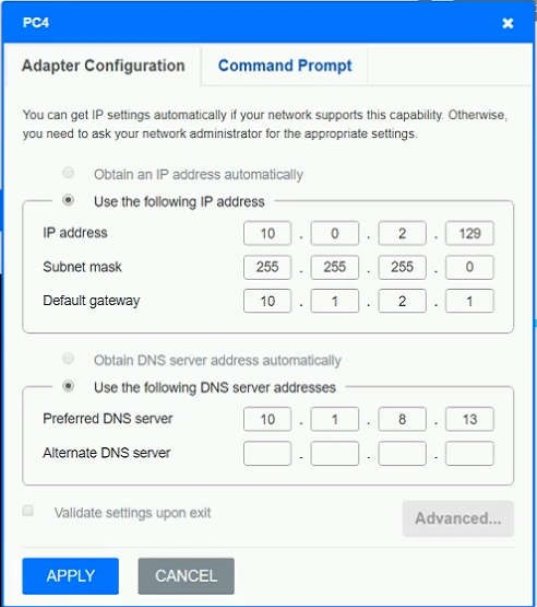

After recent changes to the pictured network, several users are unable to access the servers. Only PC1, PC2, PC3, and PC4 are clickable and will give you access to the command prompt and the adapter configuration tabs.

INSTRUCTIONS

Verify the settings by using the command prompt, after making any system changes.

Next, restore connectivity by making the appropriate changes to the infrastructure.

If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
