600-660 – Implementing Cisco Application Centric Infrastructure - Advanced (DCACIA)

Loading demo links...

Showing 4–6 of 10 questions

Question 4 (Traditional network with ACI)

What are two characteristics of network-centric design in Cisco ACI? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    There is open communication between EPGs
  • ○

    EPGs are used for microsegmentation
  • ○

    EPGs are different security zones
  • ○

    Applications define the network requirements
  • ○

    A bridge domain has one subnet and one EPG
Question 5 (Multipod)

A network engineer configured an active-active firewall cluster that is stretched across separate pods in the Cisco ACI fabric. Which two implementation setups for anycast services are available?

(Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Modify the Cisco ACI contract scope
  • ○

    Modify the MAC address on the second firewall
  • ○

    Configure the firewalls behind an EPG subnet
  • ○

    Deselect No Default SVI Gateway under EPG Subnet
  • ○

    Deploy a Layer 4 to Layer 7 service graph with PBR
Question 6 (Advanced ACI Policies and Integrations)

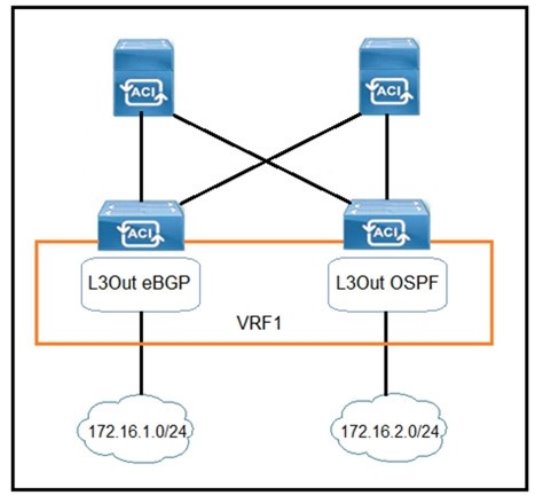

Refer to the exhibit. Which configuration must be implemented on L3Out EBGP to advertise out of the fabric 172.16.2.0/24 network that is learned from L3Out OSPF?

Select an option, then click Submit answer.

  • ○

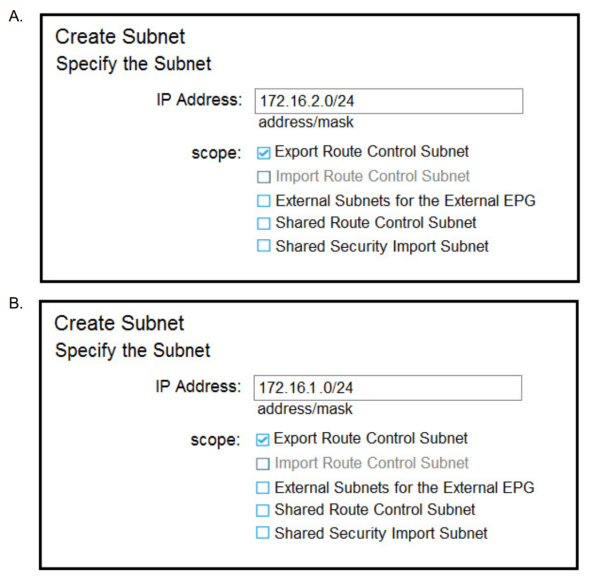

    Option A
  • ○

    Option B
  • ○

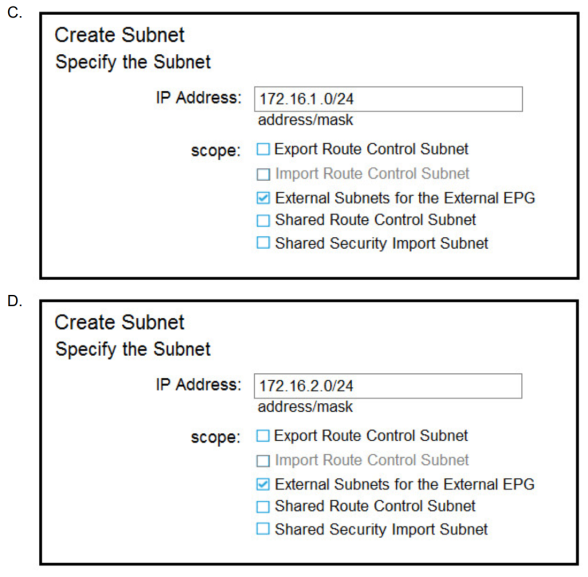

    Option C
  • ○

    Option D
