352-011 – Cisco Certified Design Expert Practical Exam

Loading demo links...

Showing 1–3 of 15 questions

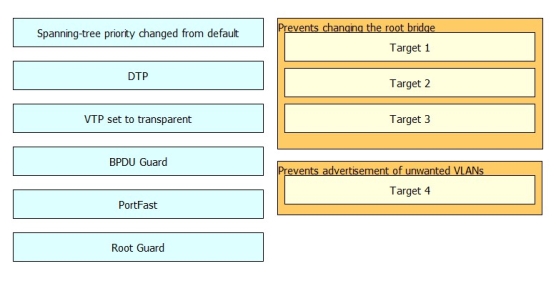

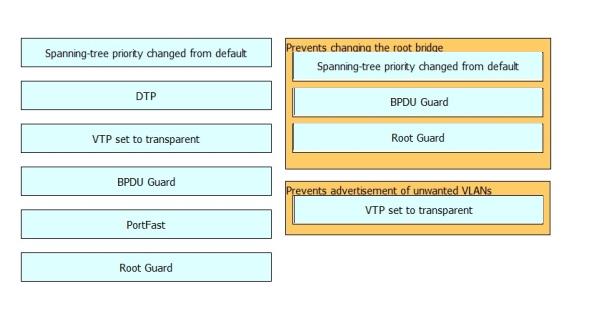

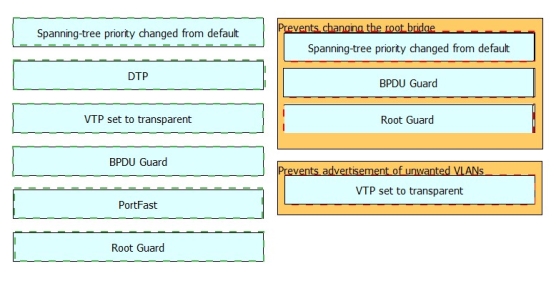

Question 1

DRAG DROP

A small local business recently had an outage after an employee plugged a switch into the corporate network, which caused the traffic pattern in the network to change. You have been tasked to redesign the network so that this does not happen again. From the left side to the right side, drag the PVRST+ features that should be implemented to prevent the corresponding root cause. Not all sources will be used.

Answer is in the explanation below.

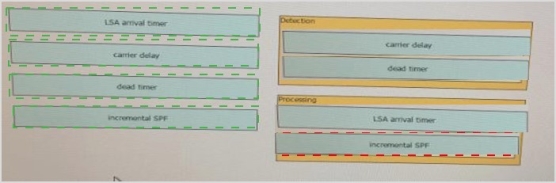

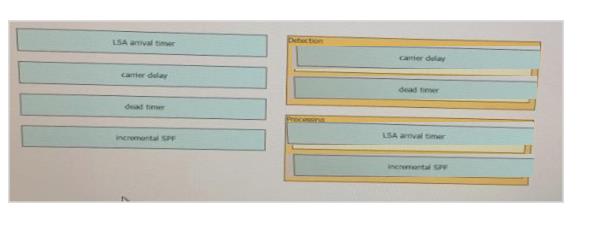

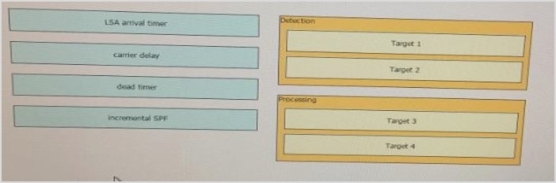

Question 2

DRAG DROP

Classify the OSPF Fast Network Convergence technique by dragging the techniques on the left and dropping them into the corresponding categories on the right.

Answer is in the explanation below.

Question 3

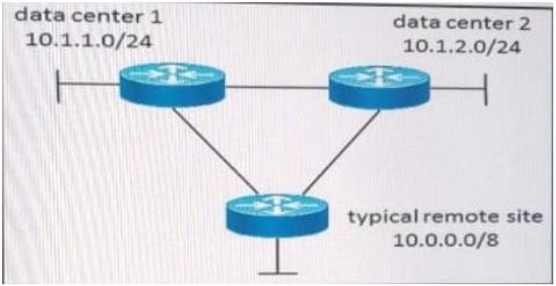

Refer to the exhibit.

A customer currently has a large EIGRP-based network with several remote sites attached.

All remote sites connect to the two corporate data centers, depicted as 10.1.1.0 and 10.1.2.0. The customer has experienced several network-wide failures where neighbors were stuck-in-active and had other network stability issues due to some links flapping. Which two redesign options increase stability and reduce the load on the remote site routers, still maintaining optimal routing between remote sites and the two data centers?

(Choose two)

Select all that apply, then click Submit answer.

  • ○

    Set the data center routers as stub-routers

  • ○

    Perform summarization at the data centers, selectively leaking routes sent to the remote sites

  • ○

    Perform summarization at the remote sites, selectively leaking routes sent to the data centers

  • ○

    Set the hello interval timer to be larger than the hold interval

  • ○

    Increase the hold interval to accommodate lost hello packets on error-prone links
