300-815 – Implementing Cisco Advanced Call Control and Mobility Services (CLACCM)

Loading demo links...

Showing 1–3 of 10 questions

Question 1 (Call Control and Dial Planning)

DRAG DROP

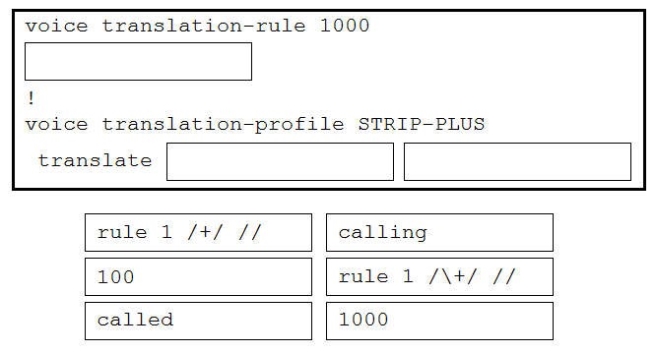

Drag and drop the commands from the bottom to the blanks in the code to implement a translation rule to allow only 11 digits to be received over a SIP trunk to a SIP provider. The Cisco UCM is currently sending calls to the Cisco Unified Border Element in E.164 format. Not all options are used.

Select and Place:

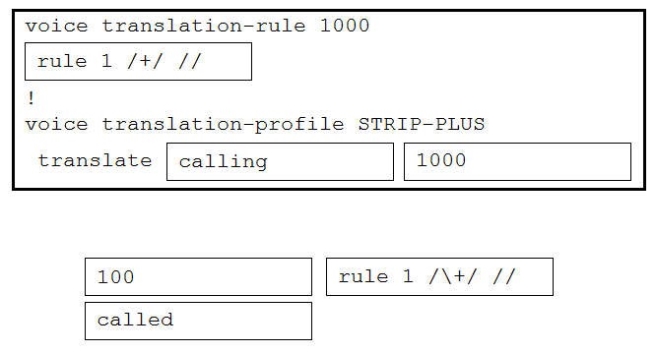

Answer is in the explanation below.

Question 2 (Mobility)

An administrator discovers that employees are making unauthorized long-distance and international calls from logged-off Extension Mobility phones when the authorized users are away from their desks. Which two configurations should the administrator configure in the Cisco UCM to avoid this issue? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Add the long-distance & international pattern’s partitions to the calling search space of the physical phone.
  • ○

    Remove the long-distance & international pattern’s partitions from the calling search space of the physical phone’s directory number.
  • ○

    Add the long-distance & international pattern’s partitions to the calling search space of the device phone.
  • ○

    Add the long-distance & international pattern’s partitions to the calling search space of the physical phone’s directory number.
  • ○

    Remove long-distance & international pattern’s partitions from the calling search space of the device phone.
Question 3 (Signaling and Media Protocols)

An administrator is troubleshooting call failures on an H.323 gateway via the CLI. To see signaling for media and call setup, which two debugs should the Administrator turn on? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    H.323 messages
  • ○

    H.225 asn1
  • ○

    H.245 asn1
  • ○

    H.225 media
  • ○

    H.323 asn1
