300-730 – Implementing Secure Solutions with Virtual Private Networks (SVPN)

Loading demo links...

Showing 1–3 of 10 questions

Question 1 (Site-to-site Virtual Private Networks on Routers and Firewalls)

DRAG DROP

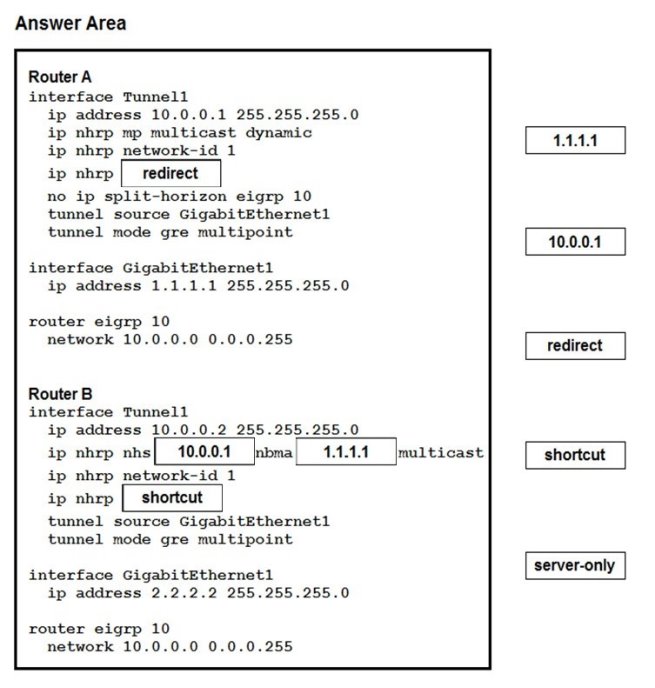

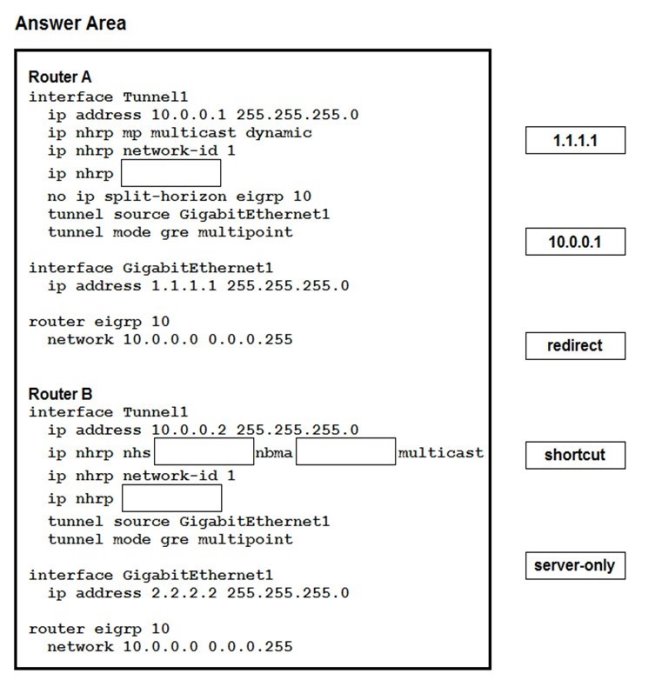

Drag and drop the correct commands from the night onto the blanks within the code on the left to implement a design that allow for dynamic spoke-to-spoke communication. Not all comments are used.

Select and Place:

Answer is in the explanation below.

Question 2 (New Update)

A network engineer is configuring a server. The router will terminate encrypted VPN connections on g0/0, which is in the VRF "Internet". The clear-text traffic that must be encrypted before being sent out traverses g0/1, which is in the VRF "Internal". Which two VRF-specific configurations allow VPN traffic to traverse the VRF-aware interfaces? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    Under the IKEv2 profile, add the ivrf Internal command.
  • ○

    Under the virtual-template interface, add the ip vrf forwarding Internet command.
  • ○

    Under the IKEv2 profile, add the match fvrf Internal command.
  • ○

    Under the IKEv2 profile, add the match fvrf Internet command.
  • ○

    Under the virtual-template interface, add the tunnel vrf Internet command.
Question 3 (New Update)

Which two components are required in a Cisco IOS GETVPN key server configuration? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    RSA key
  • ○

    IKE policy
  • ○

    SSL cipher
  • ○

    GRE tunnel
  • ○

    L2TP protocol
