Showing 1–3 of 15 questions
DRAG DROP
Drag and drop the components from the left onto the descriptions on the right that indicate what occurs to Fibre Channel fabric when that component fails.
Select and Place:

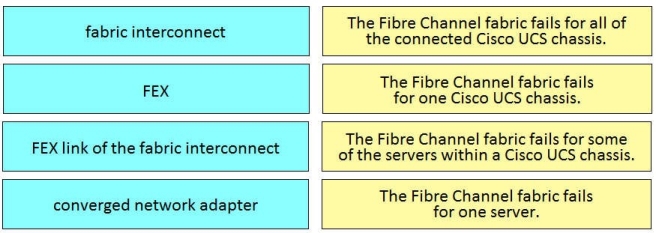

Answer is in the explanation below.
An engineer must design a secondary site to prevent a catastrophic primary site failure. The applications must communicate across sites via the data link layer of the OSI model. The Layer 3 transport that is available for this solution consists of 10-Gb connections over Layer 3.
Which two solutions meet these requirements? (Choose two.)
Select all that apply, then click Submit answer.
OTV
vPC
OSPF
IS-IS
VXLAN EVPN
An engineer configured the OSPF protocol in the vPC topology. During the catastrophic failure of one of the vPC member switches, the traffic was routed to a black hole. This route was caused by the long convergence time caused by the delay of the vPC member switch reboot. After the failure, the engineer rebooted both switches, but the secondary switch powered on before the primary one. It caused all the vPCs to be shut down due to consistency-check violations.
Which two features must be used to prevent these situations from happening in the future? (Choose two.)
Select all that apply, then click Submit answer.
peer-gateway
ip arp synchronize
delay restore
auto-recovery
system priority
