Free 200-401 – Managing Industrial Networks with Cisco Networking Practice Test Question

Free demo downloads

Loading demo links...

Showing 1–3 of 10 questions

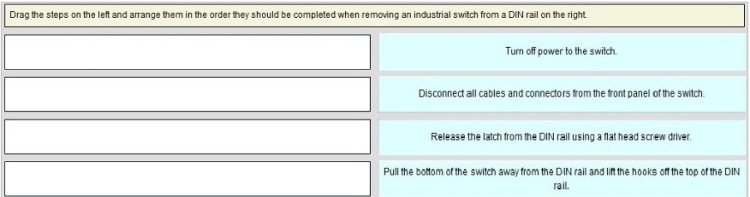

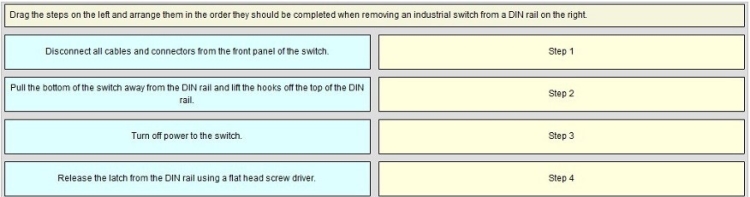

Question 1 (Install, Replace, and Remove an Industrial Device)

DRAG DROP

Select and Place:

Answer is in the explanation below.

Question 2 (Troubleshooting)

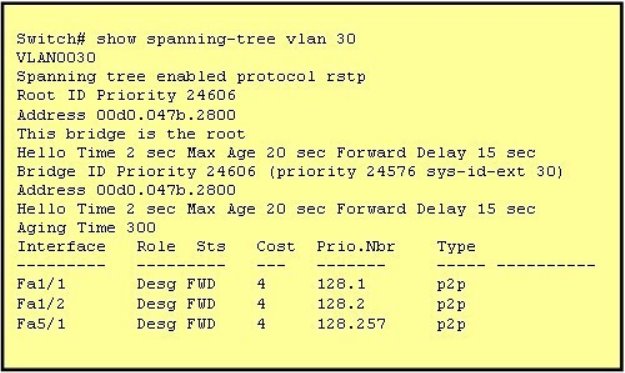

Exhibit:

Refer to the exhibit. The output that is shown is generated at an industrial switch. Which three statements are true? (Choose three.)

Select all that apply, then click Submit answer.

  • ○

    All ports will be in a state of discarding, learning, or forwarding.
  • ○

    Thirty VLANs have been configured on this switch.
  • ○

    The bridge priority is lower than the default value for spanning tree.
  • ○

    All interfaces that are shown are on shared media.
  • ○

    All designated ports are in a forwarding state.
  • ○

    This switch must be the root bridge for all VLANs on this switch.
Question 3 (Install, Replace, and Remove an Industrial Device)

Which two ports does EtherNet/IP use to communicate? (Choose two.)

Select all that apply, then click Submit answer.

  • ○

    TCP 44818
  • ○

    UDP 44818
  • ○

    TCP 502
  • ○

    UDP 502
  • ○

    TCP 2222
  • ○

    UDP 2222
