4A0-110 – Alcatel-Lucent Advanced Troubleshooting

Loading demo links...

Showing 4–5 of 5 questions

Question 4

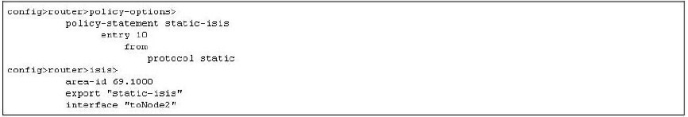

A policy is configured to redistribute four active static routes into ISIS. No ISIS route is received on the far end, what is the cause of the problem?

Select an option, then click Submit answer.

  • ○

    Action accept?has to be configured for entry 10

  • ○

    Default-action has to be configured as accept

  • ○

    Import policy should be configured under ISIS instead of export policy

  • ○

    Within entry 10, to protocol isis has to be configured

  • ○

    A prefix list has to be configured to filter the routes

Question 5

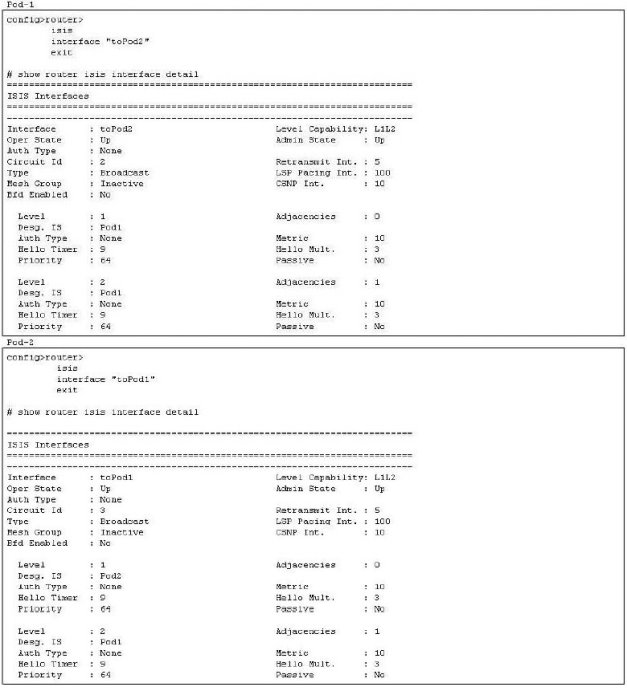

Two routers are physically connected running ISIS. ISIS L2 adjacency is up and running but L1 adjacency is not up. Review the configuration information shown below: Which of the following statement best describe the cause of the problem? Select one answer only.

Select an option, then click Submit answer.

  • ○

    The ISIS interface level is not configured on both routers

  • ○

    The ISIS interface type should be configured as point-to-point interfaces

  • ○

    ISIS System IDs are not configured on both routers

  • ○

    ISIS Area addresses are not configured on both routers

  • ○

    ISIS level capacity are not configured on both routers
