4A0-108 – Alcatel-Lucent Multicast Protocols

Loading demo links...

Showing 13–15 of 15 questions

Question 13 (Volume A)

What is the function of the MDT?

Select an option, then click Submit answer.

  • ○

    It is how PIM neighbors become aware of each other
  • ○

    It is how receivers signal the source
  • ○

    It is the path to the RP
  • ○

    It is the multicast data forwarding path
  • ○

    It is the path to the DR
Question 14 (Volume D)

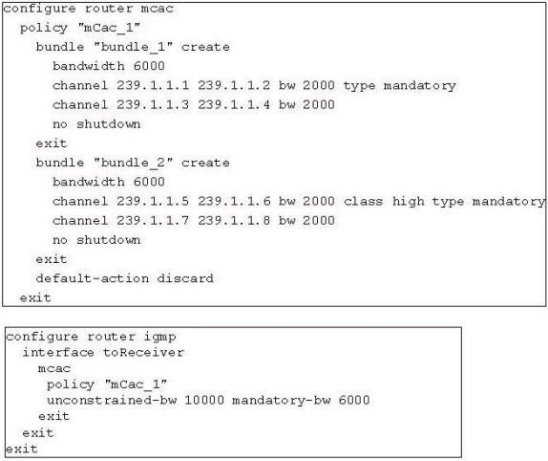

Click the exhibit.

C:\Documents and Settings\David\Desktop\1.jpg

Based on the configuration, channels 239.1.1.1, 239.1.1.2, 239.1.1.3 and 239.1.1.5 have already been establisheD. What happens when this router receives two IGMP reports to join group 239.1.1.4 and 239.1.1.8?

Select an option, then click Submit answer.

  • ○

    Channel 239.1.1.4 can be established, while 239.1.1.8 cannot.
  • ○

    Channel 239.1.1.8 can be established, while 239.1.1.4 cannot.
  • ○

    Both of these channels can be establisheD.

  • ○

    Neither of these channels can be establishe
Question 15 (Volume B)

Which of the following is a characteristic of a packet with a destination address in the Local Network Control Block address range?

Select an option, then click Submit answer.

  • ○

    A packet with this address is always forwarded throughout the multicast routing domain but never forwarded outside the multicast routing domain
  • ○

    A packet with this address can only be processed by a router
  • ○

    A packet with this address is never forwarded beyond the local link unless the TTL is greater than 1
  • ○

    A packet with this address is never forwarded beyond the local link regardless of the TTL
