4A0-105 – Alcatel-Lucent Virtual Private LAN Services

Loading demo links...

Showing 1–3 of 10 questions

Question 1 (Volume B)

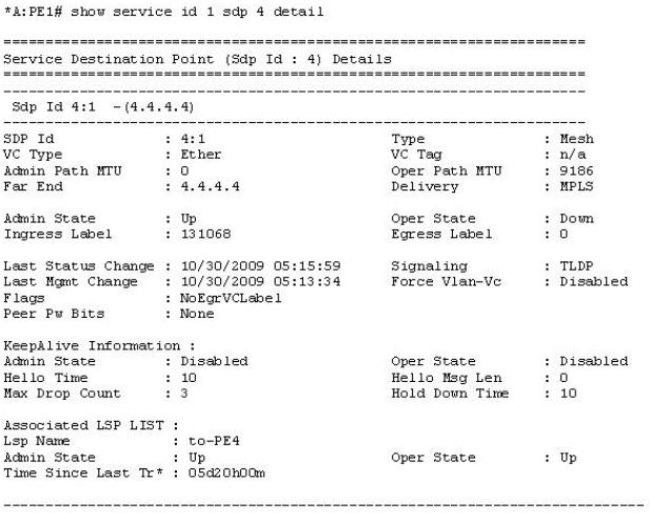

Click on the exhibit below.

C:\Documents and Settings\David\Desktop\1.jpg

Given the following output what is the most likely reason the SDP binding is operationally down? (Choose 2)

Select all that apply, then click Submit answer.

  • ○

    The sdp id is different on the far-end.
  • ○

    LDP is disabled on the far-end.
  • ○

    The vc-id is different on the far-end.
  • ○

    The mesh-sdp is missing on the far-end.
  • ○

    The mesh-sdp is administratively shutdown on PEL
  • ○

    There is an MTU mismatch.
Question 2 (Volume B)

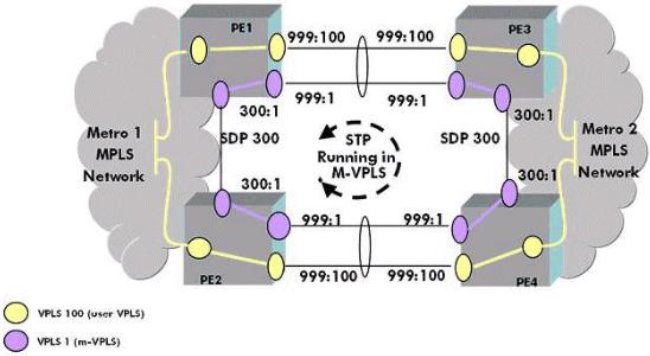

Click on the exhibit below.

C:\Documents and Settings\David\Desktop\1.jpg

You have been requested to add load balancing across the redundant spoke-SDPs in the network shown. What further configuration is required? (Choose 2)

Select all that apply, then click Submit answer.

  • ○

    An additional management VPLS.
  • ○

    Another set of LSPs between PE1 and PE3 and between PE2 and PE4.
  • ○

    Another set of SDPs between PE1 and PE3 and between PE2 and PE4.
  • ○

    Load balancing has to be enabled within the management VPLS.
Question 3 (Volume C)

The following question relates to this command syntax: "config>service# vpls 9000 customer 6 create". Which of the following statements are correct? (Choose 2)

Select all that apply, then click Submit answer.

  • ○

    The customer-id in this command is 9000.
  • ○

    The service-id in this command is 9000.
  • ○

    This value 9000 should be unique across the network as a best practice.
  • ○

    The vc-id will be 6 for the service by default.
  • ○

    The egress vc-label will be 9000.
