4A0-102 – Alcatel-Lucent Border Gateway Protocol

Loading demo links...

Showing 4–6 of 10 questions

Question 4

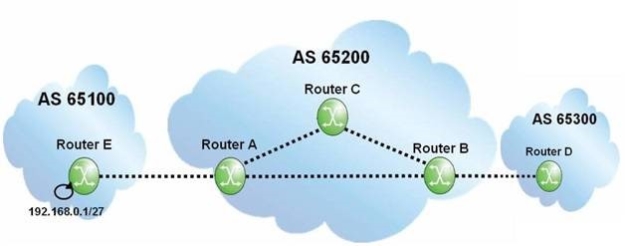

Click the exhibit.

Assuming router A is configured with "next-hop-self", what does the BGP update for prefix 192.168.0.1/27 contain when it arrives at router B?

Select an option, then click Submit answer.

  • ○

    AS Path of 65200 65100, Next Hop of router A.
  • ○

    AS Path of 65200 65100, Next Hop of router E.
  • ○

    AS Path of 65100, Next Hop of router A.
  • ○

    AS Path of 65100, Next Hop of router E.
Question 5

A router in AS 65100 receives three routes for 138.120.0.0/16. The first route has an AS Path of 65200 65400 65300 and a local preference of 150. The second route has an AS Path of 65200 65300 and a local preference of 100. The third route has an AS Path of 65600 65300 and a local preference of 100. Which route will appear in the RIB-out?

Select an option, then click Submit answer.

  • ○

    Only the first route will appear in the RIB-Out.
  • ○

    Only the second route will appear in the RIB-Out.
  • ○

    Only the third route will appear in the RIB-Out.
  • ○

    All routes will appear in the RIB-Out.
Question 6

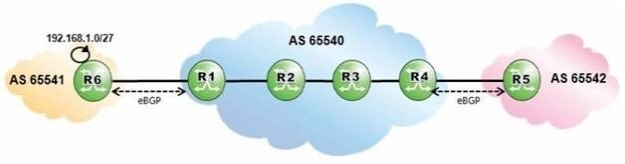

Click on the exhibit.

AS 65540 is using MPLS to provide BGP shortcuts for its iBGP routing. Which routers must be configured with the "configure router bgp igp-shortcuts rsvp-te" command?

Select an option, then click Submit answer.

  • ○

    Routers R6, R1, R4 and R5.
  • ○

    Routers R1and R4.
  • ○

    Routers R1, R2, R3 and R4.
  • ○

    Routers R2 and R3.
