4A0-101 – Alcatel-Lucent Interior Routing Protocols

Loading demo links...

Showing 13–15 of 15 questions

Question 13 (Volume E)

Click on the exhibit.

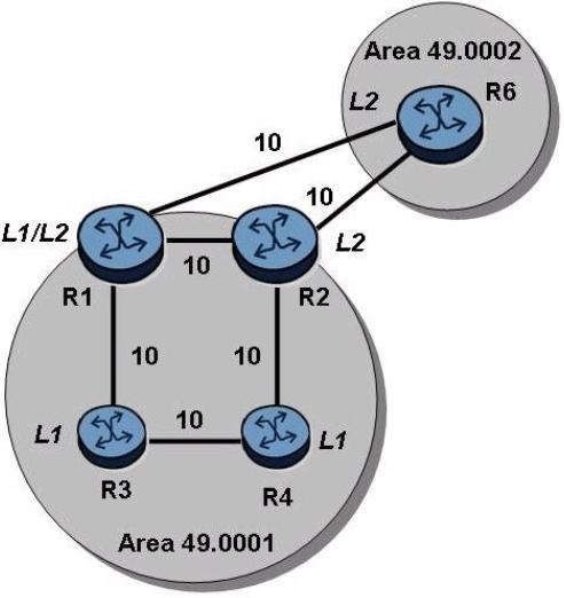

Examine the physical topology of the IS-IS network, the metrics of the links and the levels of the routers. All routers have a system address included in IS-IS.

Which of the following describes the route that router R4 will use to reach the system address of router R6?

Select an option, then click Submit answer.

  • ○

    Router R4 will have a route to router R6's system address with router R2 as the next-hop.
  • ○

    Router R4 will have a default route with router R2 as the next-hop.
  • ○

    Router R4 will have a default route with router R3 as the next-hop.
  • ○

    Router R4 will not have a route to router R6's system address, nor will it have a default route.
Question 14 (Volume D)

Click on the exhibit.

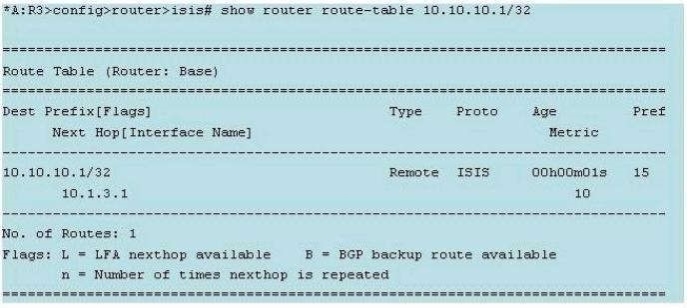

The operator of an IS-IS network wishes to have link metrics dynamically calculated in the same manner as OSPF. The router with system address 10.10.10.1 is one hop away on a 1 Gbps link Which of the following is correct?

Select an option, then click Submit answer.

  • ○

    The router is correctly configured.
  • ○

    A reference-bandwidth is not configured on the router.
  • ○

    A reference-bandwidth is configured on the router but wide-metrics is not.
  • ○

    The interface metric must be manually configured to 100.
Question 15 (Volume B)

What must be configured on the Nokia 7750 SR for RIP to advertise locally attached links?

Select an option, then click Submit answer.

  • ○

    A policy statement within the router identifying what is to be advertised

  • ○

    Access-lists denoting what is to be advertised

  • ○

    Default metrics for each link

  • ○

    A group and neighbor statement for each peer
